Categories: OXYGEN CONCENTRATOR, PORTABLE OXYGEN CONCENTRATOR
Operating Conditions | Operational temperature: 5° C to 35° C (41° F to 95° F) Relative humidity: 15% to 93% Atmospheric Pressure: 700 hPa to 1010 hPa Altitude: up to 10,000 ft. (3048 m.) |
Storage and Transport Conditions | -20° C to 60° C (-4° F to 140° F) - unit only Relative humidity: up to 93%, non-condensing |
Oxygen Concentration | At least 87% at all settings (maximum of 96%) over the rated environmental range. |
Breathing Frequency | Up to 40 BPM |
Inspiratory Trigger Sensitivity | ≤ 0.2 cm H2 O |
User Interface | Capacitive Touch Screen |
Dimensions | 23.9 cm x 21.1 cm x 9.1 cm (standard battery) (9.4 in x 8.3 in x 3.6 in) 25.9 cm x 21.1 cm x 9.1 cm (extended battery) (10.2 in x 8.3 in x 3.6 in) |
Weight | 2.3 kg (5.0 lbs) with standard battery installed 2.7 kg (6 lbs) with extended battery installed |
Sound Level | 42 dBA typical at setting 2 and 20 BPM 48 dBA typical at setting 5 and 20 BPM (when measured at 1 m from front of device) Maximum Sound Power of 63 dBA and Maximum Sound Pressure level of 55 dBA per ISO 80601-2-69 |
Audio Alarm | 45 dBA or greater |
Maximum Outlet Pressure | 20 psig |

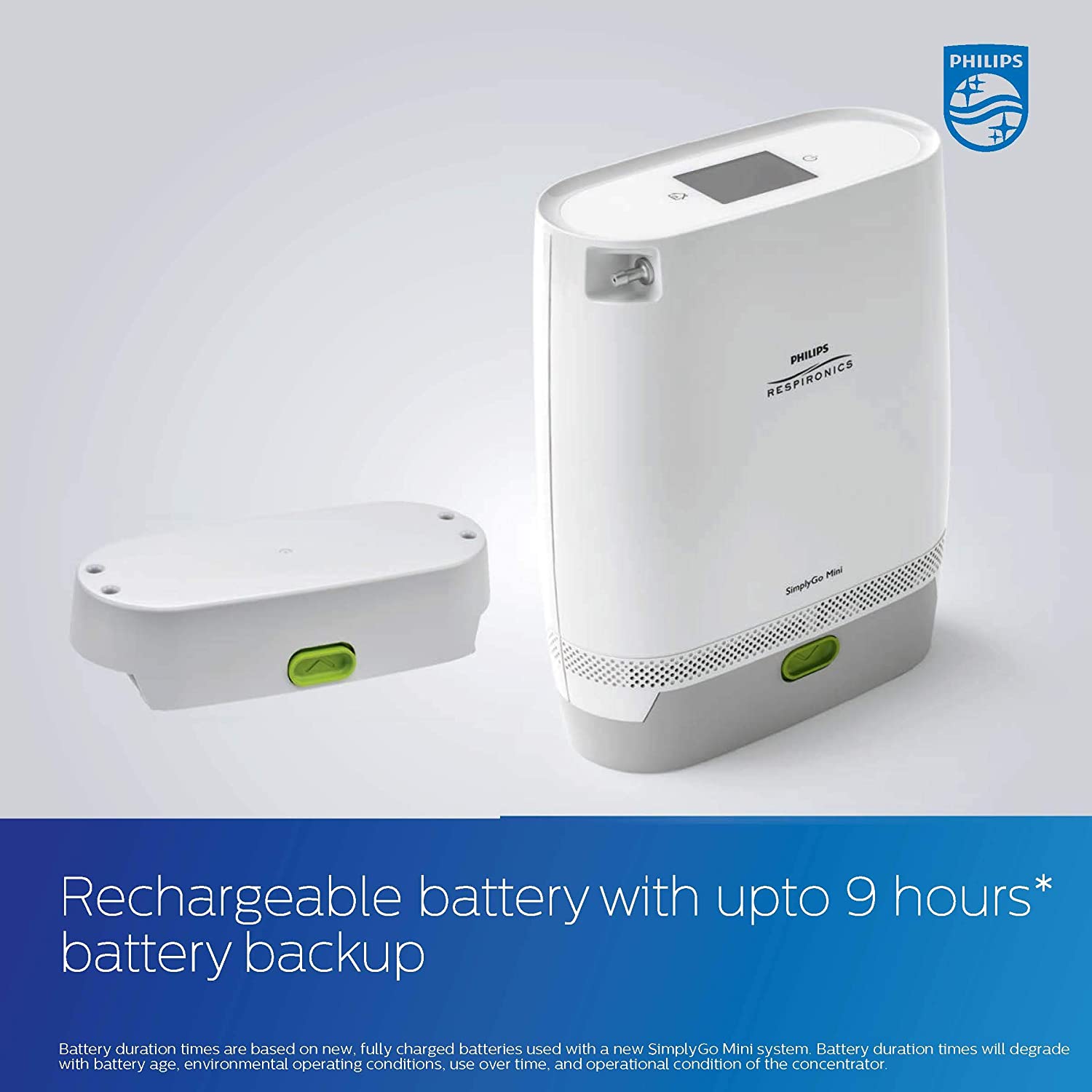

Battery Duration | Up to 4.5 hours (Pulse setting of 2 at 20 BPM with Standard battery) Up to 9 hours (Pulse setting of 2 at 20 BPM with Extended battery) |
