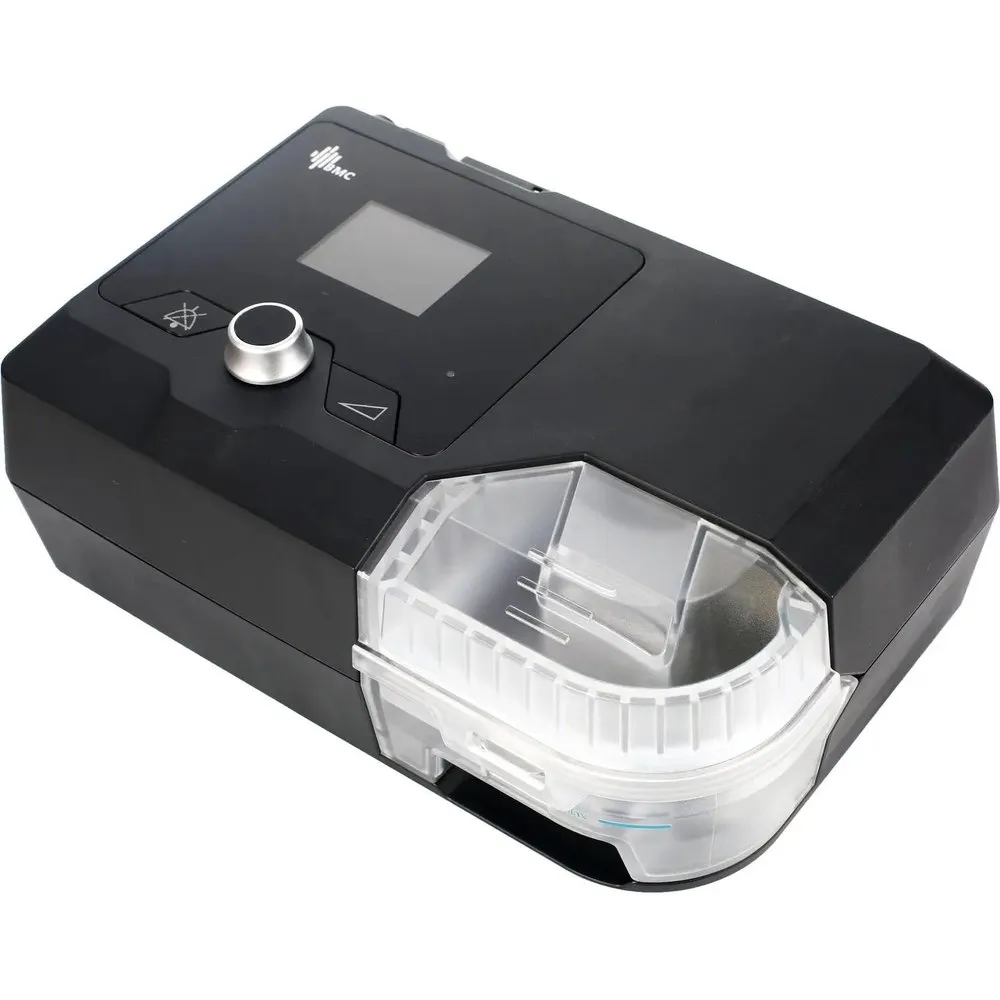

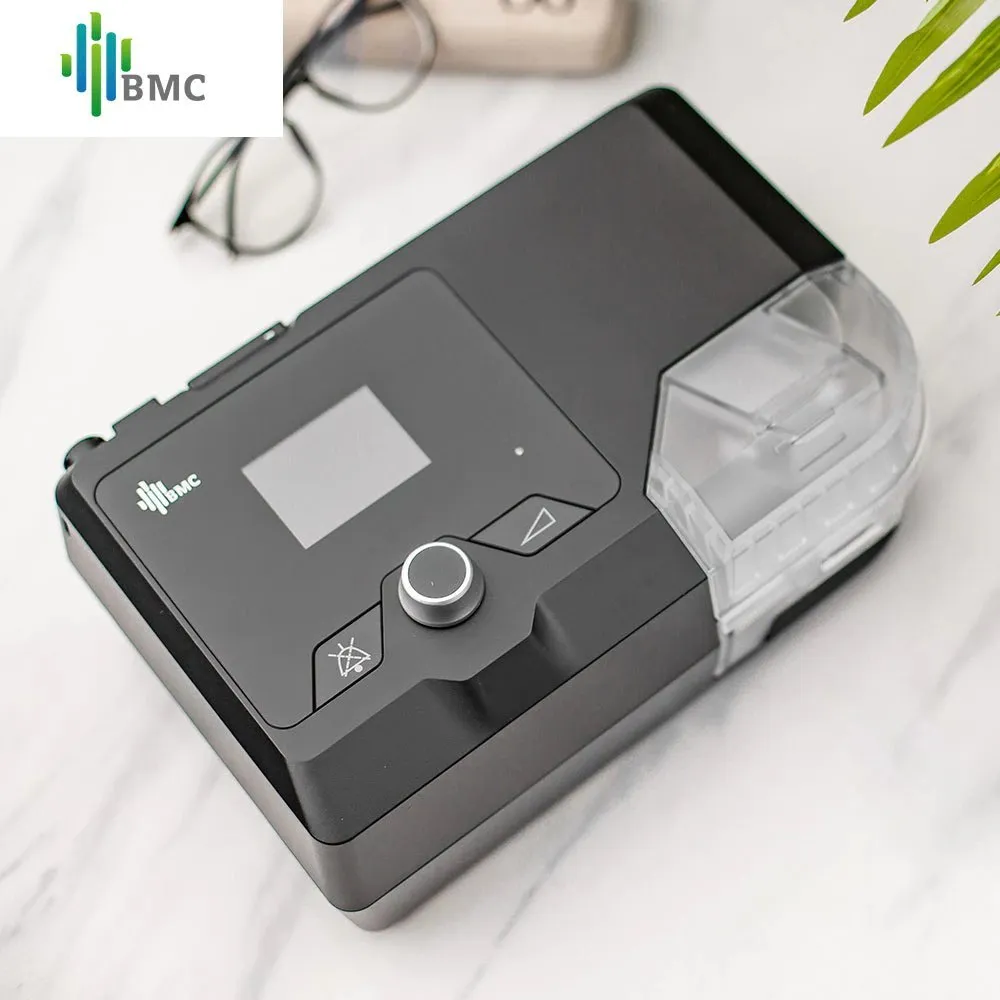

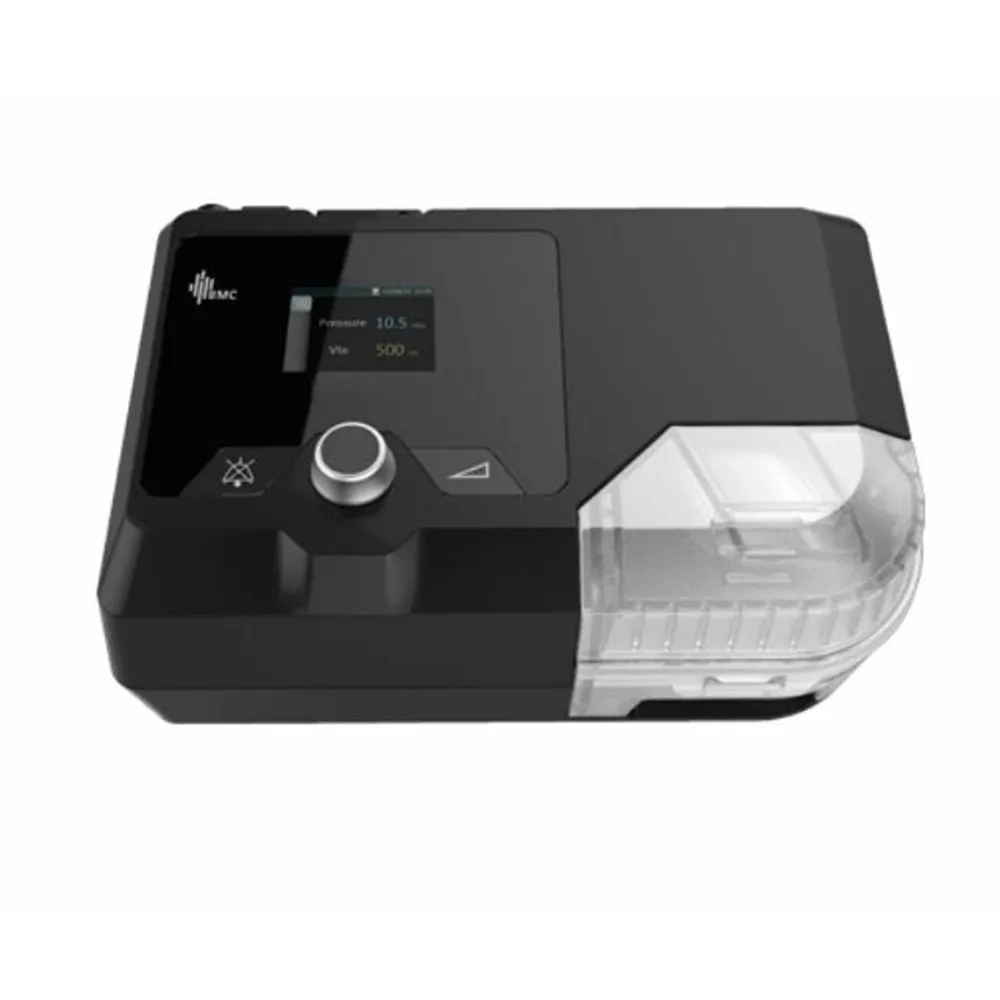

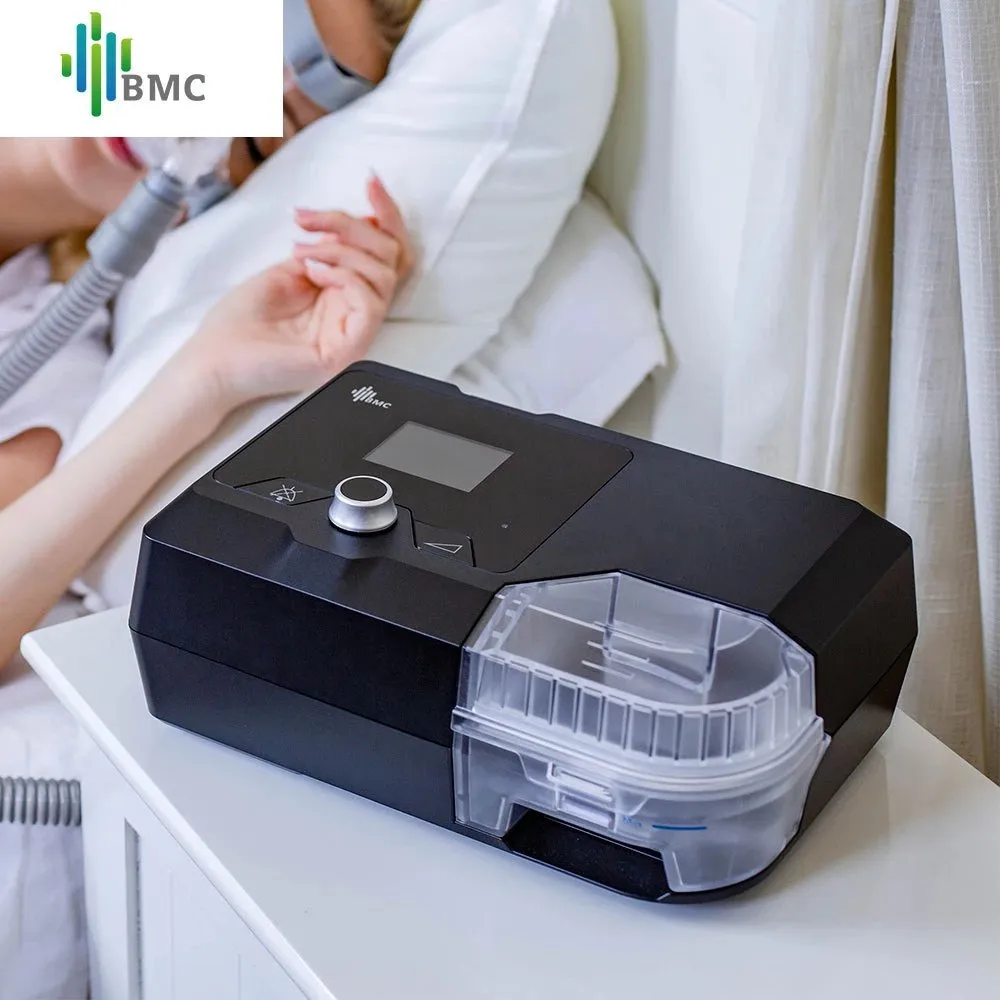

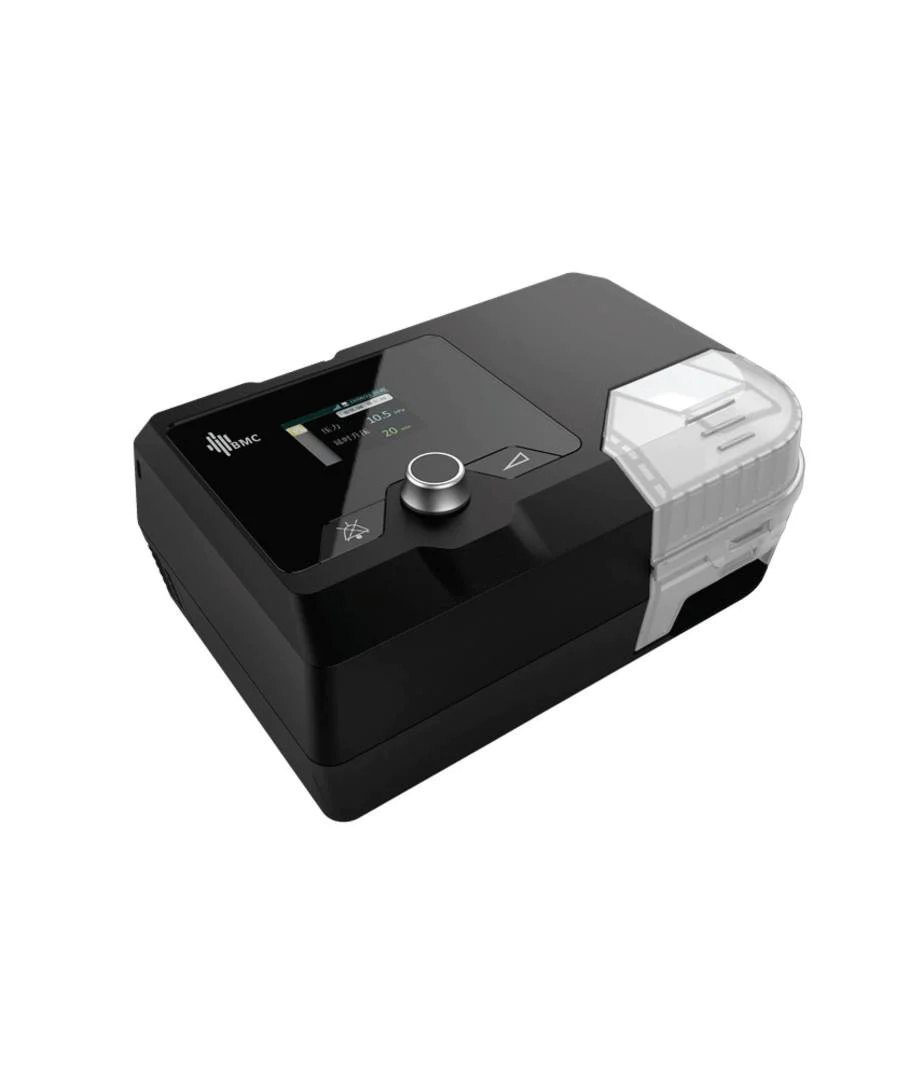

• The RESmart G2S CPAP is an auto-adjusting pressure CPAP (Continuous Positive Airway Pressure) device with integrated humidifier, designed for the treatment of adult Obstructive Sleep Apnea (OSA), either in the hospital or at home. • With its stable performance & excellent comfort features the G2S let you say goodbye to snoring troubles and enjoy a whole night's sleep. • The BMC RESmart G2S Auto CPAP is a self-adjusting pressure device with integrated humidifier, designed for the treatment of adult obstructive sleep apnea (OSA), in the hospital or at home. • With its affable appearance, stable performance, excellent comfort characteristics, let yourself and your family say goodbye to troubles and enjoy the whole night of sleep. • Designed with an integrated humidifier, the RESmart G2S is a smaller, lighter and more affordable, 2.4-inch color screen with a user-friendly interface. Simple and easy to use 3-button control panel. • The water chamber with design structure and opening cover is more practical for filling water and cleaning. • Stable performance with an optimized noise reduction design, the noise level is as low as 28 dB, no matter the static or dynamic noise, it is controlled to be the low-frequency noise which is unnoticeable to humans, you do it feel quieter. • Automatic leaks and altitude compensation guarantee precise therapy everywhere.
• Continuous positive airway pressure (CPAP) is a method for patient who have sleep apnea disorders.obstructive sleep apnea is a sleep disorders when your breathing stop and starts. • Obstructive sleep apnea causes interruption breathing often because your throat or airway temporarily block them. • A CPAP machine works a compressor motor generates a continuous steam of pressurized air that travel through an air filter into a flexible tube. • The machine works on a steady floe of pressurized air into your nose and mouth as you sleep it keep your airways helps breathe normally. • The airstream from the CPAP machine pushes against any blockages opening your airways so your lungs receives plenty of oxygen. • It improves your ability to sleep without walking up. • It lowers your risk of having a heart attack stroke or other cardiovascular attack. • It hepls lower your blood pressure. • It reduces daytime sleepiness. • It may reduce blood glucose and cholesterol level. • Blood pressure • Heart disease • Reduce stroke risk • Upper airway resistance syndrome

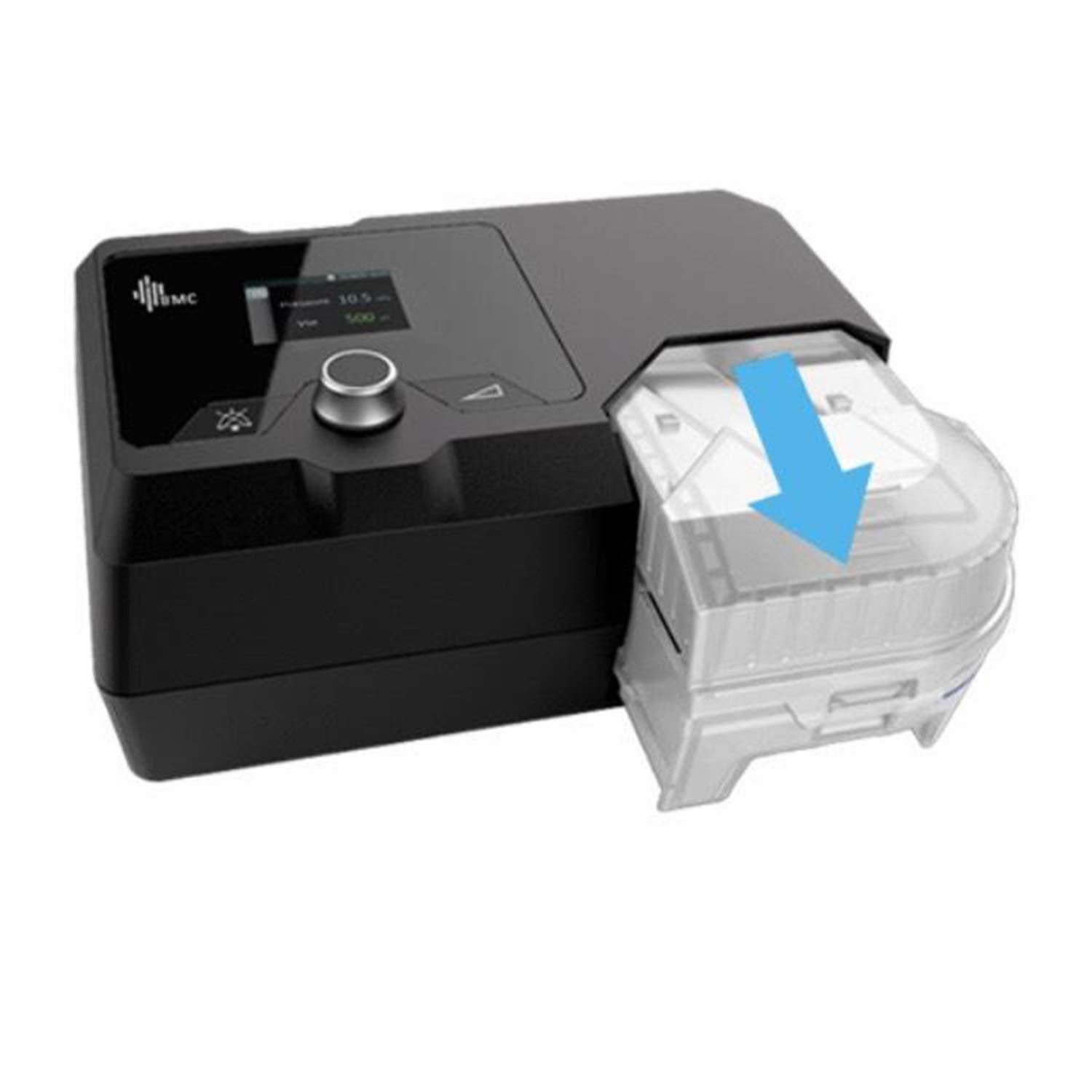

• RESmart G2S Auto CPAP Machine is designed with an integrated humidifier that makes it smaller, lighter and more user-friendly. • 2.4-inch color screen with user-friendly interface. • 3-button control panel, simple and easy to use. • The water chamber withdrawing structure and the opening cover is more convenient to fill water and clean. • This new intelligent Luna Auto CPAP machine has been designed for home therapy of Obstructive Sleep Apnea (OSA) and offers all the latest most up to date technology while at the same time remaining to be very user-friendly. • The Luna Auto CPAP Machine has advanced sensor technology to automatically track your respiratory condition, detect the onset of snoring and automatically increases the pressure until the airway is fully open. • The Integrated H60 Heated Humidifier gives you extra comfort while adding just the right amount of humidity that you need throughout the night. • Integrated Eco heated humidifier • Quiet & easy to operate • Small and discrete • SD card to store data • Innovative dual chamber humidifier provides greater efficacy • Crystal clear LCD display allows for easy viewing of settings • Modern design
-
| Name | Function |
| Humidifier Indicator | Indicate the humidity level. There are five levels in total. The number of indicator lights that light up is directly proportional to the humidity level. If none of the indicator lights light up, it means the humidifier is turned off |
| Mute Button | Press this button to mute the alert. However, if the problem causing the alert is not solved, the alert will sound again two minutes later |
| Knob | Start treatment and adjust device settings |
| Ramp Button | Enable the Ramp feature |
| Display Screen | Display menus for operation, messages, monitoring data, etc |
| Power Indicator | Indicate the power supply status |
| Air Outlet | Deliver pressurized air; connected to the tube or the air inlet of the humidifier |
| Humidifier Connector | Provide power to the humidifier which is connected to the main device |
| Shield | Connect the humidifier to the main device after this shied is removed |
| SD Card Slot | Insert the SD card into this slot |
| Communications Port | Connected to external equipment (Not for connection to the phone or computer) |
| DC Inlet | An inlet for the DC power supply |
| Filter Cap | Place the cap on the air filter, which is used to filter dust and pollen in the air entering the device |
Specifications
| Device Size | Dimensions:
| 170 mm × 180 mm × 118 mm, or 290 mm × 180 mm × 134 mm (with the humidifier) | ||||||
| Weight: | 1.5 kg, or 2.5 kg (with the humidifier) | |||||||
| Product Use, Transport and Storage | ||||||||
| Operation | Transport and Storage | |||||||
| Temperature: 5° C to 35° C (41˚F to 95˚F) | -25° C to 70° C (-13˚F to 158˚F) | |||||||
| Humidity: 15% to 93% Non-condensing | 15% to 93% Non-condensing | |||||||
| Atmospheric Pressure: 760 ～ 1060 hPa | 760 ～ 1060 hPa | |||||||
Mode of Operation |
Continuous | |||||||
| Work Mode | CPAP | |||||||
| SD Card | The SD card can record patient data and fault information. | |||||||
| AC Power Consumption | 100 ～ 240 V AC, 50 / 60 Hz, 2.0 A max | |||||||
| Main Device offer to USB Communications Port | 5 V ～ 2.0 A | |||||||
| Main Device offer to Humidifier | 24 V ～ 1.5 A | |||||||
| Electric Shock | ||||||||
| Type of Protection Against Electric Shock | Class II Equipment | |||||||
| Degree of Protection Against Electric Shock | Type BF Applied Part | |||||||
| Degree of Protection Against Ingress of Water | IP22 | |||||||
| Pressure Range | ||||||||
| Pressure Range | 4 to 20 hPa (in 0.5 hPa increments), ≤30 hPa under single fault conditions. | |||||||
| Pressure Display Accuracy | ± (0.5 hPa＋4%) | |||||||
| Static Pressure Stability | ± 0.5 hPa | |||||||
| Ramp | The ramp time ranges from 0 to 60 minutes. | |||||||
| Sound Pressure Level | ＜30 dB, when the device is working at the pressure of 10 hPa. | |||||||
| Sound Power Level | ＜38 dB, when the device is working at the pressure of 10 hPa. | |||||||
| Maximum Flow | ||||||||
| Test Pressure (hPa) | 4 | 8 | 12 | 16 | 20 | |||
| Measured Pressure at the Patient Connection Port (hPa) | 3 | 7 | 11 | 15 | 19 | |||
Average Flow at the Patient Connection Port (l/min) | 80 | 92 | 91.5 | 91 | 96 | |||
| SpO2 Range: | 0 ～ 100%
The margin of error for SpO2 between 70% and 100% is ± 3%.
No strict accuracy requirements for SpO2 below 70%. | |||||||
| Pulse Rate | Range: 40 ～ 240 BPM | |||||||
| Margin of Error: ± 3% | ||||||||
| Wavelengths | Red: 663 nanometers Infrared: 890 nanometers | |||||||
| Maximal Optical Output Power | Less than 1.5 mw maximum average. | |||||||
| Tube | Length: 6 ft. (1.83 m) | |||||||
| The Form and the Dimensions of the Patient Connection Port | The 22 mm conical air outlet complies with ISO 5356-1. | |||||||
